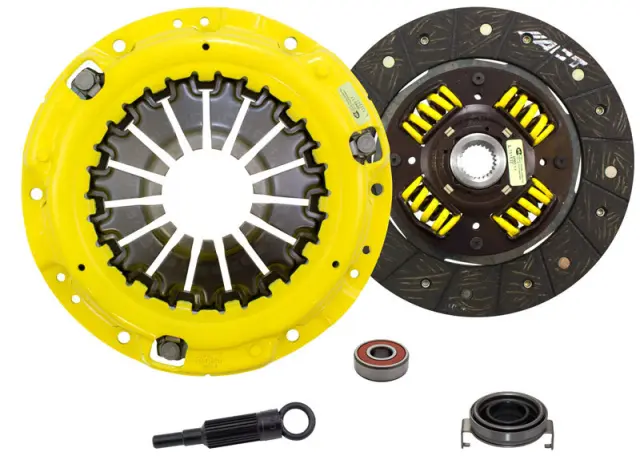

ACT Heavy Duty Performance Street Sprung Clutch Kit - Advanced Clutch (SB5-HDSS)
Details
- Brand:
- SKU:
SB5-HDSS
- GTIN: 00842385015626
- UPC: 842385015626
- Description: SB5-HDSS kit features ACT's most popular Heavy Duty pressure plate and most popular street disc. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's Performance Street discs feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. These discs have reduced marcel for faster shift action to complement ACT pressure plates, with increased strength and reliability.
HD/Perf Street Sprung
ACT HD/Perf Street Sprung Kit
Transmission Clutch Kit
ACT HD/Perf Street Sprung Clutch Kit
Light to moderate pedal effort, smooth positive engagement, OE to mild gear rattle; Longer friction life, extended by ACT's exclusive diaphragm design; Carefully engineered, precisely assembled, accurately balanced, with premium organic friction materials for heat tolerance and reduced fade; Recommended for street and race use; 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability
clutch kit;heavy duty;spring-centered;street disc, sprung disc;sprung hub - Condition: New
California Proposition 65
WARNING: Cancer and reproductive harm - www.P65Warnings.ca.gov Key Product Benefits
- "Excellence in Performance", backed by the best one-year warranty in the industry!
Additional Information
| Alignment Tool Included | Yes |
| Clutch Disc Diameter | 228 |
| Clutch Master Cylinder Included | No |
| Clutch Slave Cylinder Included | No |
| Disc Material | Organic |
| Disc Type Sprung Solid | Sprung |
| Flywheel Bolts Included | No |
| Grade Type | Performance |
| Grease Included | Yes |
| Input Shaft Diameter | 1 |
| Input Spline Quantity | 24 |
| Pilot Bearing Included | Yes |
| Pilot Bushing Included | No |
| Pressure Plate Bolts Included | No |
| Pressure Plate Type | Heavy Duty |
| Product Weight (lbs.) | 14.5 |
| Prop 65 - Short Label | WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov |
| Prop 65 Long Label | Warning: This product can expose you to chemicals including carbon black, glass wool fibers, or silica (in clutch discs), chromium and nickel, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov |
| Prop 65 Yes/no | Yes |
| Release Bearing Included | Yes |
| Title | ACT HD/Perf Street Sprung Kit |
| Torque Capacity (ft/lbs.) | 420 |
| Torque Capacity Over Oe | 32% |
| UPC | 00842385015626 |
