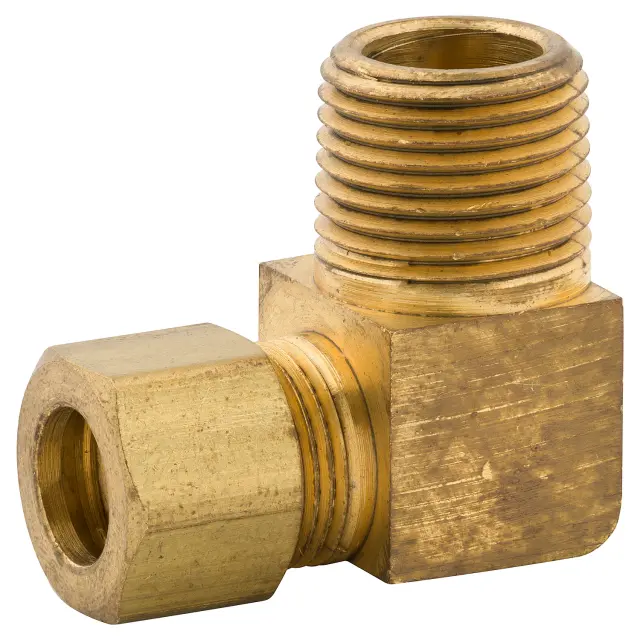

Elb Conn Com, Br, 3/8, (3/8 NPTM), Bag - AGS (CF-34B)
Details
- Brand:
- SKU:
CF-34B
- GTIN: 00077146394225
- UPC: 077146394225
- Description: Compression unions are used in low pressure application such as: air, oil, and water. They are generally used to connect lengths of copper, brass, and aluminum tubing. To make connection, place the nut and then the sleeve over the tubing and then insert tube into the fitting body. When tight, the wedging action of sleeve between body and nut create a leak free connection. Use for joining 5/16in copper, brass, or aluminum tubing in low-pressure applications (NOT brake lines).
Elb Conn Com 3/8, (3/8 NPTM)
Elb Conn Com, Br, 3/8, (3/8 NPTM), Bag - Condition: New
- Disclaimer: WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov
California Proposition 65
WARNING: Cancer and reproductive harm - www.P65Warnings.ca.gov Key Product Benefits
- Compression unions are used in low pressure application such as: air, oil, and water. They are generally used to connect lengths of copper, brass, and aluminum tubing. To make connection, place the nut and then the sleeve over the tubing and then insert tube into the fitting body. When tight, the wedging action of sleeve between body and nut create a leak free connection. Use for joining 5/16in copper, brass, or aluminum tubing in low-pressure applications (NOT brake lines).
Additional Information
| Bend Angle (deg) | 90 |
| Compression Sleeve Inside Diameter (in) | 3/8 |
| End 1 Thread Size (in) | 9/16-24 |
| End 2 Thread Size (in) | 3/8 |
| Material | Brass |
| Maximum Working Pressure (psi) | 900 |
| Shape | Elbow |
| Temperature Range (deg C) | -54 To +121 |
| Thread Diameter | Male '3/8 - 18 NPT |
| Thread Size (in) | 3/8 - 18 |
| Tube Size (in) | 3/8 |
| UPC | 00077146394225 |
| Working Temp Range (deg F) | -65 To +250 |
