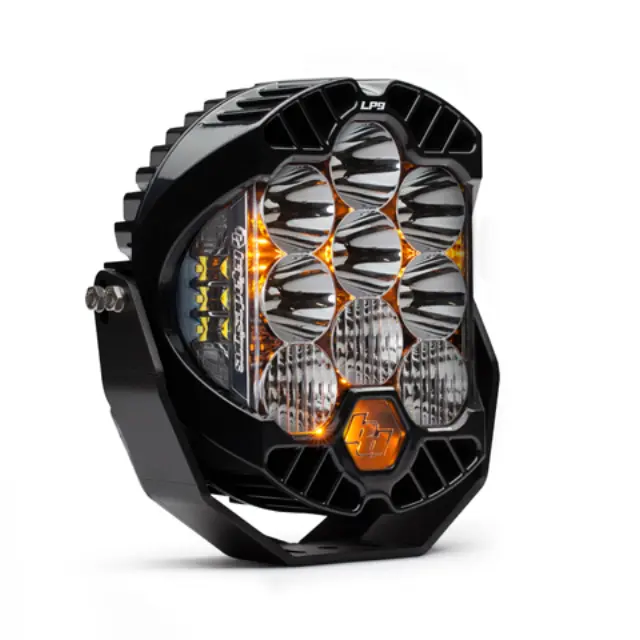

LP9 Pro LED Auxiliary Light Pod - Baja Designs (320003)
- Sale Price: $871.31
Details
- Brand:
- SKU:
320003
- GTIN: 00819314026619
- UPC: 819314026619
- Other Names:
3200
- Description: A design that was inspired by Baja Designs legendary 8 inch La Paz HID; The LP9 features modern styling and performance, with some of the most advanced LED technologies available today. The LP9 utilizes 9 forward projecting LEDs and 6 LEDs for Integrated Peripheral Technology (IPT) for a total lumen output of 12,547 at 9A. The IPT provides an incredible 200-degree spread of usable light and the housing was designed to provide exceptional heat dispersion by using Direct Ducted Cooling, which allows air to travel from the front of the housing to the rear. With a day-time running light, low, and high power mode, the LP9 will fulfill all your lighting needs.
LP9 Pro LED Light Pod (Driving/Combo; Clear)
Baja Designs Light Pod
Auxiliary Light
One Light Pod
Universal - Condition: New
California Proposition 65
WARNING: Cancer and reproductive harm - www.P65Warnings.ca.gov Key Product Benefits
- The LP9 utilizes 9 forward projecting LEDs and 6 LEDs for Integrated Peripheral Technology (IPT) for a total lumen output of 12,547 at 9A
- The IPT provides an incredible 200-degree spread of usable light and the housing was designed to provide exceptional heat dispersion by using Direct Ducted Cooling, which allows air to travel from the front of the housing to the rear
- With a day-time running light, low, and high power mode, the LP9 will fulfill all your lighting needs
Additional Information
| Depth (in.) | 3.250 |
| Height (in.) | 8 |
| Length (in.) | 8 |
| Weight (lbs.) | 6.500 |
| Amperage Rating (A) | 9 |
| Average Rated Life (hr.) | 49,930 |
| Backlight Amperage Rating (A) | 0.200 |
| Backlight Wattage (W) | 2.800 |
| Beam Pattern | Driving/Combo |
| Bezel Material | Powder Coat Cast Aluminum |
| Brightness (Lumens) | 12547 |
| Description | Driving/Combo; Clear |
| Housing Color | Black |
| Housing Material | Powder Coat Cast Aluminum |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | High Beam/Low Beam/Day-Time Running Backlighting |
| Lighting Quantity | 9 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | LP9 Pro LED Light Pod |
| Secondary Amperage Rating (A) | 1.520 |
| Secondary Brightness (Lumens) | 2302 |
| Secondary Light Quantity | 6 LEDs |
| Secondary Lighting Technology | LED |
| Secondary Lighting Type | Integrated Peripheral Technology (IPT) |
| Secondary Wattage (W) | 21 |
| Terminal Connector | DT06-4S Deutsch |
| Terminal Type | Mating Connector |
| Universal or Specific | Universal |
| Wattage (W) | 124.200 |
| Wiring Harness Included | No |
| Patent No. | 5,504,603 |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Prop 65 - Short Label | CR |
| Prop 65 Warning Label | Prop 65 WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. |
| Prop 65 Yes/No | Yes |
| DES | LP9 Pro LED Auxiliary Light Pod |
| EXT | LP9 Pro LED Light Pod (Driving/Combo; Clear) |
| TLE | LP9 Pro LED Light Pod (Driving/Combo; Clear) |
| Add-On | Accessories-328001-Rock Guard (Black) Accessories-328002-Rock Guard (Amber) Accessories-328003-Rock Guard (Clear) Accessories-668601-Lens Kit (Spot; Clear) Accessories-668603-Lens Kit (Driving/Combo; Clear) Accessories-668611-Lens Kit (Spot; Amber) Accessories-668613-Lens Kit (Driving/Combo; Amber) Associated Products-660302-Anti Theft Hardware Kit - 1/4-20x1/2 Socket Pin Head Bolts Associated Products-660303-Anti Theft Hardware Kit - 3/8 in. Tamperproof Nuts Compatible Products-640167-Upfitter Lock Out Harness Compatible Products-640168-Controller Module Harness Compatible Products-640172-Splitter Harness (2-Light Max) Compatible Products-640176-Backlit Add-On Harness |
