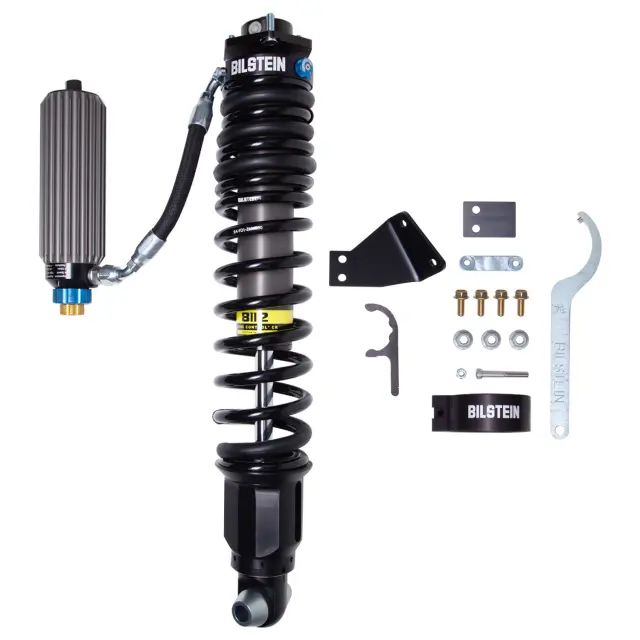

B8 8112 (ZoneControl CR DSA+) - Rear Left Corner Module - Bilstein (41-314326)
- Sale Price: $1,819.59
Details
- Brand:
- SKU:
41-314326
- GTIN: 00651860936154
- UPC: 651860936154
- Positions: Rear Left
- Description: Bilstein B8 8112 (ZoneControl CR DSA+) is a direct fit, 3-way adjustable, 2.65-in body, position sensitive coilover shock designed for light trucks and SUV’s. ZoneControl CR DSA+ is a revolutionary technology delivering position sensitive damping plus user Dual Speed Adjustability. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression plus an adjustable JCO (internal hydraulic bump stop). The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3” (depending on application). It is supplied with a remote reservoir for increased cooling along with an accompanied, bolt-on anodized reservoir chassis mount. Bilstein B8 8112 (ZoneControl CR DSA+) position sensitive Dual Speed Adjustable coilovers offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs with the ability to quickly adjust the shock to tackle any terrain.
60mm Rear Left Corner Module
Ford Bronco;'21+; RL; B8 8112 DSA+ EVO-A
Suspension Shock Absorber and Coil Spring Assembly
B8 8112 (ZoneControl CR DSA+) - Rear Left Corner Module - Condition: New
California Proposition 65
WARNING: Cancer and reproductive harm - www.P65Warnings.ca.gov Key Product Benefits
- ZoneControl® CR: Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons
- Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression plus an adjustable JCO (internal hydraulic bump stop)
- 60mm remote reservoir for increased oil capacity and cooling
Additional Information
| Adjustable Damping | Click Adjusters for High and Low Speed Compression plus internal Bump Stop (JCO) |
| Body Design | Smooth Body (Coilover) |
| Body Material | Aluminum |
| Boot Included | No |
| Collapsed Length (in) | 18.40 |
| Collapsed Length (mm) | 467.1 |
| Extended Length (in) | 26.60 |
| Extended Length (mm) | 674.6 |
| Finish | Dampers: EVO Grey/Springs: Black |
| Internal Design | Monotube |
| Lower Mount Type | Eye 25.4mm with Heim Spacers |
| Parttype | Shocks / Struts |
| Piston Diameter | 60mm |
| Prop 65 (y/n) | Y |
| Prop 65 - Short Label | WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov |
| Reservoir | Yes - Finned Aluminum |
| Segment | Light Truck |
| Series | B8 8112 (ZoneControl CR DSA+) |
| Spring Seat Included | Yes |
| Title | Bilstein Shock Absorbers |
| UPC | 00651860936154 |
| Upper Mount Type | Special |
