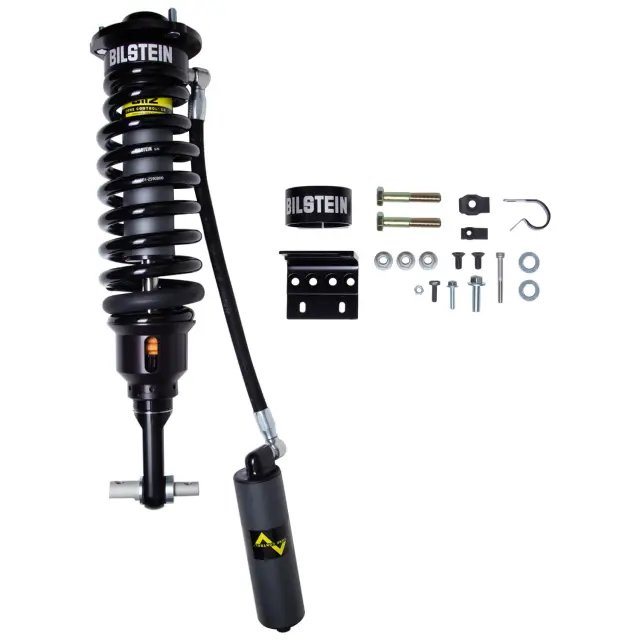

B8 8112 (ZoneControl CR) - Front Right Corner Module - Bilstein (41-326725)
- Sale Price: $1,332.82
Details
- Brand:
- SKU:
41-326725
- GTIN: 00651860931005
- UPC: 651860931005
- Positions: Front Right
- Description: Bilstein B8 8112 (ZoneControl CR) is a direct fit, 2.65-in body position sensitive coilover shock designed for light trucks and SUV’s. ZoneControl CR is a revolutionary technology delivering position sensitive damping. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3.8” (depending on application). The coilover is supplied with a remote reservoir for increased cooling and an accompanied, bolt-on anodized reservoir chassis mount. BILSTEIN B8 8112 (ZoneControl) CR position sensitive coilovers will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs.
60mm Front Right Corner Module
Ford F150 4WD; '15-21+; FR; B8 8112 EVO
Suspension Shock Absorber and Coil Spring Assembly
B8 8112 (ZoneControl CR) - Front Right Corner Module - Condition: New
California Proposition 65
WARNING: Cancer and reproductive harm - www.P65Warnings.ca.gov Key Product Benefits
- ZoneControl® CR: Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons
- Triple piston design delivers comfort during every day driving conditions and maximum control under large suspension inputs
- 60mm remote reservoir for increased oil capacity and cooling
Additional Information
| Adjustable Damping | Non-Adjustable |
| Aftermarket Upper Arms Required | Yes |
| Body Design | Smooth Body (Coilover) |
| Body Material | Steel |
| Boot Included | No |
| Collapsed Length (in) | 18.45 |
| Collapsed Length (mm) | 468.7 |
| Extended Length (in) | 23.22 |
| Extended Length (mm) | 589.8 |
| Finish | Dampers: EVO Grey/Springs: Black |
| Internal Design | Monotube |
| Lower Mount Type | Crossbar |
| Parttype | Shocks / Struts |
| Piston Diameter | 60mm |
| Prop 65 (y/n) | Y |
| Prop 65 - Short Label | WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov |
| Reservoir | Yes |
| Segment | Light Truck |
| Series | B8 8112 (ZoneControl CR) |
| Spring Seat Included | Yes |
| Title | Bilstein Shock Absorbers |
| UPC | 00651860931005 |
| Upper Mount Type | Special |
