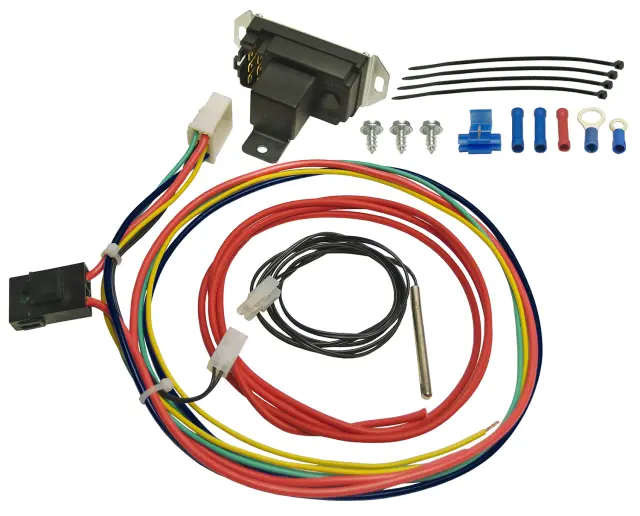

Adjustable Electric Fan Controller, Push In Radiator Probe - Derale (16759)
Sale Price$110.72
Description : This newly redesigned adjustable electric fan control kit is designed to activate up to 2 fans with a total maximum draw of 25 amps. Includes a push-in radiator probe, relay wire harness and electrical connectors for an easy installation. A/C override circuit included. Adjustable fan controller turn-on range from 150°F - 240°F, and turn-off preset at 10°F lower than turn-on.
Adjustable Electric Fan Controller, Push In Radiator Probe
Engine Cooling Fan Controller
Adjustable turn-on temperature from 150-240°F
Turn-off temperature is preset at 10°F below turn-on temperature
Push-in radiator probe
Heavy duty 40/60 amp relay rated at maximum 25 amp continuous draw
AC override circuit included
Ground circuit relay
Operates up to a 25 amp fan or two fans with a combined draw of 25 amps or less.
Adjustable Electric Fan Controller, Push In Radiator Probe
Engine Cooling Fan Controller
Adjustable turn-on temperature from 150-240°F
Turn-off temperature is preset at 10°F below turn-on temperature
Push-in radiator probe
Heavy duty 40/60 amp relay rated at maximum 25 amp continuous draw
AC override circuit included
Ground circuit relay
Operates up to a 25 amp fan or two fans with a combined draw of 25 amps or less.
- Return Policy
- Min. 12 Months
- Safe, Secure Checkout
Product Details
Installation GuideDescription
This newly redesigned adjustable electric fan control kit is designed to activate up to 2 fans with a total maximum draw of 25 amps. Includes a push-in radiator probe, relay wire harness and electrical connectors for an easy installation. A/C override circuit included. Adjustable fan controller turn-on range from 150°F - 240°F, and turn-off preset at 10°F lower than turn-on.
Adjustable Electric Fan Controller, Push In Radiator Probe
Engine Cooling Fan Controller
Adjustable turn-on temperature from 150-240°F
Turn-off temperature is preset at 10°F below turn-on temperature
Push-in radiator probe
Heavy duty 40/60 amp relay rated at maximum 25 amp continuous draw
AC override circuit included
Ground circuit relay
Operates up to a 25 amp fan or two fans with a combined draw of 25 amps or less.
Adjustable Electric Fan Controller, Push In Radiator Probe
Engine Cooling Fan Controller
Adjustable turn-on temperature from 150-240°F
Turn-off temperature is preset at 10°F below turn-on temperature
Push-in radiator probe
Heavy duty 40/60 amp relay rated at maximum 25 amp continuous draw
AC override circuit included
Ground circuit relay
Operates up to a 25 amp fan or two fans with a combined draw of 25 amps or less.
Features & Benefits
- Adjustable Electric Fan Controller, Push In Radiator Probe
Part Number (MPN)
16759
Brand
SKU
16759
UPC / GTIN
083277167591 / 00083277167591
Condition
New
Other Names
electric fan relays, electric fan push in probes, adjustable electric fan controllers, electric fan switches, electric fan thermostats, fan thermostats, electric fan thermostat relays, fan relay kits, electric fan relay kits, fan thermostat probes
Max Amp Draw
25
Prop 65
Yes
Title
Adjustable Electric Fan Controller, Push In Radiator Probe
Trigger
Ground Circuit
UPC
00083277167591
| Year | Make | Model | Body & Trim | Engine & Transmission |
|---|---|---|---|---|
Vehicle #1
Year
Make
Model
Body & Trim
Engine & Transmission
| Brand | Equivalent Part Numbers |
|---|---|
BrandEquivalent Part Numbers
ACDelco
1551096
ATI
CWK733647
CTR
HS1010
Car Care
AC8589
Carquest Premium Fan Clutches
226204
Compressor Works
207534, 270011
Cooling Depot
11135879, 35879
