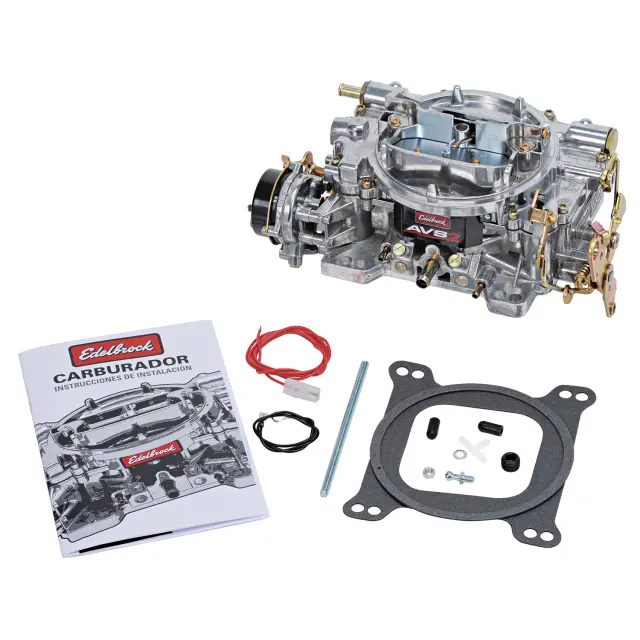

AVS2 Carburetor #1901 500 CFM With Electric Choke, Satin Finish (Non-EGR) - Edelbrock (1901)
- Sale Price: $629.26
Details
- Brand:
- SKU:
1901
- GTIN: 00085347019014
- UPC: 085347019014
- Description: The Edelbrock #1901 AV2 Series 500 cfm Carburetor is designed and calibrated for small cubic-inch single carb applications, match with an Edelbrock Performer or Performer EPS manifold or other brands of similar design. Includes both timed and full vacuum ports for ignition advance. #1901 is calibrated for single-quad applications and factory equipped with: Metering Jets - Primary .095, Secondary .095, Primary Rod .070 x .052, orange spring (5' Hg). Use carb Studs #8008 or #8024 if needed. Match with an Edelbrock intake manifold for the ultimate induction upgrade.
AVS2 Carburetor #1901 500 CFM With Electric Choke, Satin Finish (Non-EGR)
CARB - Condition: New
California Proposition 65
WARNING: Cancer and reproductive harm - www.P65Warnings.ca.gov Additional Information
| Condition | New |
| RGL | WARNING: This product can expose you to Zinc, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Maximum Flow Rating | 500 |
| Flange Shape | Square |
| Secondary Jet Diameter | 0.095 |
| Metering Rod Size | .070 x .052 |
| Spring Force | 5" Hg (Orange) |
| Recommended Use | For Single Carb Applications |
| Body Height | 3.25 |
| Bore Diameter | Primary Bore 1.44; Secondary Bore 1.6875 |
| Primary Jet Diameter | 0.095 |
| Series | AVS2 |
| Material | Aluminum |
| Gasket Or Seal Included | Yes |
| Choke Type | Electric |
| Main Venturi Diameter | 1.19 |
| Barrel Quantity | 4 Barrel |
| Booster Type | annular |
| EGR Port | No |
| Finish | Satin |
