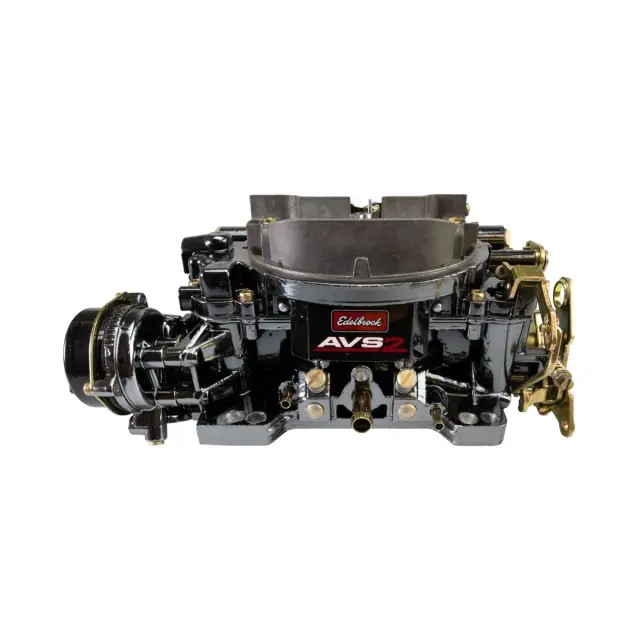

Edelbrock AVS2 650 CFM Carburetor #1906-BP Electric Choke, Black Plasma Finish - Edelbrock (1906-BP)
- Sale Price: $743.98
Details
- Brand:
- SKU:
1906-BP
- GTIN: 00085347897452
- UPC: 085347897452
- Description: Edelbrock's AVS2 #1906-BP with Electric Choke is a special Black Plasma finished 650 CFM street carb with Annular Flow Booster technology for near-EFI-like drivability that you can feel as soon as you step on the gas. The AVS2 1906-CP features an annular ring with eight evenly spaced orifices that replaces the standard single brass tube (down-leg) fuel feed. The AVS2 booster ring distributes fuel into the airflow stream with an even spray that eliminates flat spots and greatly improves throttle response in the low-to mid-RPM range without sacrificing top-end power. The Black Plasma finish is applied is a 7 stage process to ensure the most durable and brilliant finish possible. Black Plasma has a deep gloss that reflects the surrounding colors for a beautiful effect. The AVS2 is unaffected by engine backfires since there are no power valves to blow out. For fast and simple part-throttle tuning, metering rods and springs can be changed in seconds without carburetor removal or fuel draining. AVS2 carbs have the unique ability to hold a tune when compared to other carburetors. Your tuning and adjustments stay unchanged, so performance remains consistent. Updated primary and secondary booster clusters in the AVS2 offer the most accurate and up-to-date calibration available for today's fuels and octane levels. Additionally, the unique Qwik-Tune Secondary Air Valve allows for limitless calibration of the secondary circuit. Adjustments can be with simple hand tools in seconds to suit your application. AVS2 Carburetors feature a two-piece design for easy tuning that allows you to make float level adjustments or replace internal components without draining the carburetor or removing it from the engine. The 1906-CP AVS2 650 CFM comes with an electric choke and is manufactured by Edelbrock in the USA.
Edelbrock's AVS2 #1906-BP with Electric Choke is a special Black Plasma coated 650 CFM street carb with Annular Flow Booster technology for near-EFI-like drivability that you can feel as soon as you step on the gas.
Edelbrock AVS2 650 CFM Carburetor #1906-BP Electric Choke, Black Plasma Finish
CARB - Condition: New
California Proposition 65
WARNING: Cancer and reproductive harm - www.P65Warnings.ca.gov Key Product Benefits
- Annular Flow Booster technology
- Beautiful and Durable Black Plasma coating
- Easy to maintain finish
- Electric Choke
Additional Information
| Throttle Linkage Type | Universal |
| Float Level | 45123 |
| Small Venturi Diameter | 1.63 |
| Main Venturi Diameter | 1.19 |
| Secondary Jet Diameter | 0.098 |
| Primary Jet Diameter | 0.101 |
| Air Cleaner Flange Diameter | 5.09 |
| Adjustable Float Level | Yes |
| Float Material | Brass |
| Choke Type | Electric |
| Flange Shape | Square |
| Base Width | 5.16 |
| Base Length | 5.62 |
| Series | AVS2 |
| Mounting Hardware Included | No |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Metering Rod Size | .070 x .037 |
| Fuel Compatibility | Gas |
| Condition | New |
| Accel Pump Capacity | Adjustable - 25cc/31cc/39cc |
| Barrel Quantity | 4 |
| Gasket Or Seal Included | Yes |
| Mounting Hole Quantity | 4 |
| Maximum Flow Rating | 650 |
| Marine Approved | No |
| Body Height | 3.25 |
| Inlet Fitting Thread Diameter | 5/8" -20 |
| Spring Force | 5" Hg (Orange) |
| Booster Type | Annular |
| Bore Diameter | Primary Bore 1.44; Secondary Bore 1.75 |
| Finish | Black Plasma |
| EGR Port | No |
| Material | Aluminum |
