Details
- Brand:
- SKU:
7483
- GTIN: 00085347074839
- UPC: 085347074839

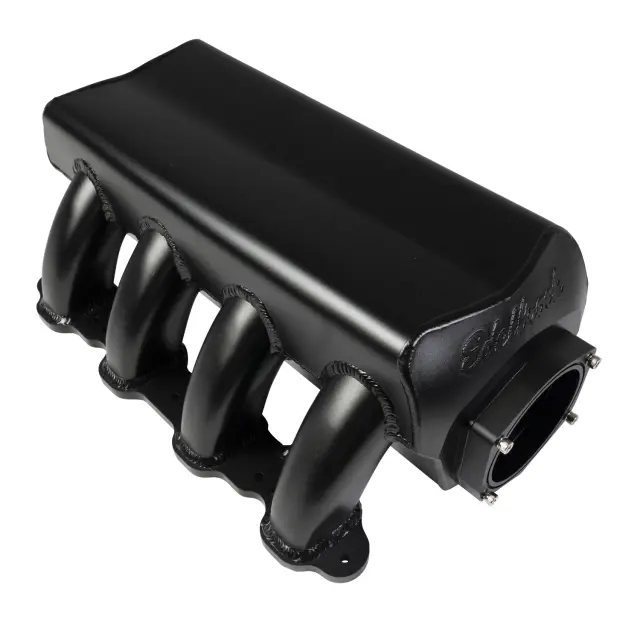

- Description: Edelbrock introduces the all-new XTS(TM) Manifold for the Ford 7.3-liter Godzilla Engine. This manifold features shorter-than-stock tapered runners tuned for high-RPM gains in engine swap applications. Finished in a highly attractive black powder-coat finish, the XTS is designed of lightweight, durable sheet metal. The flanges are of a billet construction for strength and consistent sealing with the heads. A horizontal throttle-body mount solves one of the most common swap fitment issues of intake air routing. All standard vacuum take-off ports are found on the rear of the manifold, and it comes complete with the mounting and vacuum take-off hardware. Team up the XTS manifold (P/N 7483) with a FAST 102mm throttle body (P/N 54106) and COMP Stage 3 camshaft (P/N 405-20-17) to create a 637 HP beast ready to swap into your favorite ride.
The XTS Manifold for Ford 7.3L Godzilla V8 is designed with shorter-than-stock tapered runners tuned for high-RPM gains in engine swap applications. Made of lightweight, durable, black powder-coated sheet metal.
Godzilla Intake Manifold
Engine Intake Manifold
Edelbrock XTS Intake Manifold for Ford Godzilla 7.3L Engines
Intk Mnfld - Condition: New
Key Product Benefits
- Horizontal throttle body positioning makes inlet plumbing engine swap vehicles very easy.
- Short tapered runners provide significant high rpm gains, especially when matched with our Comp Cams Stage 3 Godzilla camshaft.
- Two 1/8 and two 1/4 NPT bosses for extra vacuum take-off points.
Additional Information
| Cylinder Head Configuration | Stock |
| Basic Operating RPM Range | 2500-7000 |
| Injection Style | Direct |
| Injectors Included | No |
| Aftermarket Fuel Rail Required | No |
| Fuel Rail Included | No |
| Runners Removable | No |
| Material | Aluminum |
| Supplemental Boss Quantity | None |
| Supplemental Bosses Cast-In | No |
| Throttle Body Included | No |
| Throttle Body Bore Size | 102 |
| Vehicle Model | Ford |
