Performer Small-Block Chevy Cylinder Head Hydraulic Flat Tappet Cam - Edelbrock (60859)
- Sale Price: $1,470.51
Details
- Brand:
- SKU:
60859
- GTIN: 00085347608591
- UPC: 085347608591

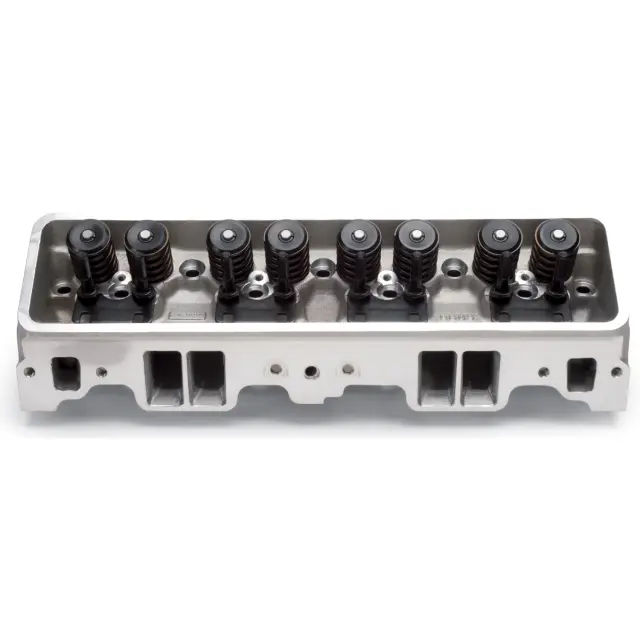

- Description: The Edelbrock #60859 Small-block Chevy cylinder head is designed for 1987-95 Throttle Body Injected (T.B.I.) and Tuned Port Injected (T.P.I.) 5.7L S/B Chevy engines originally equipped with center bolt valve covers. Performer center bolt cylinder head is 50-state street legal and accept factory center bolt valve covers. The intake bolt pattern utilizes the 1987-95, 73deg angle on the two center bolts. Will maintain stock compression ratio when used with the recommended head gasket. The Edelbrock Performer head is perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. They also feature the highest quality intake and exhaust valves and valve springs.
Engine Cylinder Head
Performer Small-Block Chevy Cylinder Head Hydraulic Flat Tappet Cam
Cyl. Head - Condition: New
California Proposition 65
WARNING: Cancer and reproductive harm - www.P65Warnings.ca.gov Additional Information
| Exhaust Port Location | Standard |
| Family | Performer |
| Camshaft Type | Flat Tappet |
| Rotor Center Bore Inside Diameter | Straight |
| Exhaust Runner Volume | 65 |
| Series | Performer |
| Quantity | Sold Individually |
| Horsepower | 250-425 |
| Retainer Included | Yes |
| Intake Valve Diameter | 2.02 |
| Valve Spring Diameter | 1.46 |
| Valve Spring Maximum Lift | 0.575 |
| Construction Type | Complete |
| Non-PADB ID 9040 | D-215-94 |
| CNC Ported | No |
| Valve Stem Diameter | 0.3438 |
| Rocker Arm Stud Diameter | 0.375 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Exhaust Valve Diameter | 1.60 |
| EGR Port | Yes |
| Seat Material | Ductile Iron |
| Deck Thickness | 0.625 |
| Guide Material | Manganese Bronze |
| Push Rod Diameter | (Suggested) 0.3125 |
| Valve Angle | 23 |
| Seat Angle | Exhaust 45 deg/Intake 45 |
| Valve Springs Included | Yes |
| Valve Spring Retainers Included | Yes |
| Valve Seals Included | Yes |
| Valve Locks Included | Yes |
| Valve Lock Material | Chromoly Steel Steel |
| Valve Cover Gasket Included | No |
| Rocker Arms Included | No |
| Rocker Arm Studs/Bolts Included | Yes |
| Mounting Hardware Included | No |
| Material | Aluminum |
| Intake Runner Volume | 165 |
| Head Casting Number | 6085F |
| Guide Plates Included | Yes |
| Guide Plate Material | Chromoly Steel Hardened Steel |
| Grade Type | Performance |
| Deck Height | 9.025 |
| Cylinder Head Gasket Included | No |
| Combustion Chamber Volume | 60 |
| Assembled | Yes |
| Valves Included | Yes |
