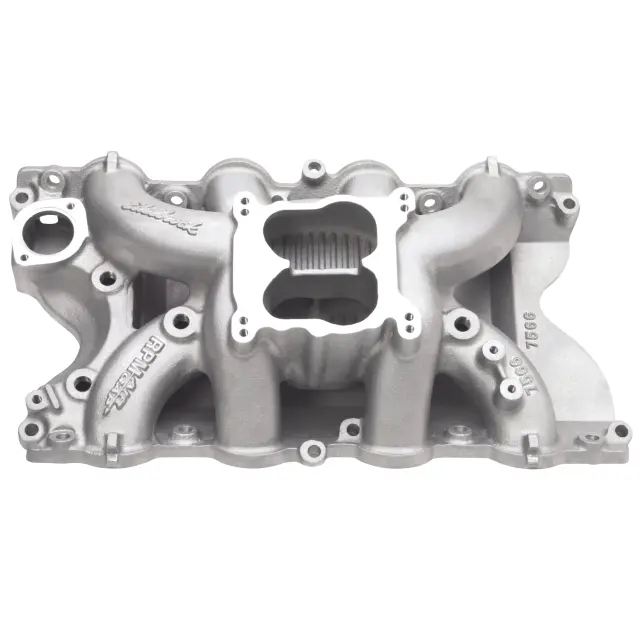

RPM Air-Gap Big Block Ford 460 Intake Manifold - Edelbrock (7566)
- Sale Price: $681.55
Details
- Brand:
- SKU:
7566
- GTIN: 00085347075669
- UPC: 085347075669
- Description: Edelbrock part #7566 RPM Air-Gap 460 intake manifold is designed for street and high performance 429/460+ c.i.d. Ford V8's with standard or Cobra Jet heads. The RPM Air-Gap 460 incorporates the same race-winning design that's been used on our Victor Series competition intakes for decades. The Air-Gap design features an open air space that separates the runners from the hot engine oil resulting in a cooler, denser charge for more power. It also features a larger cross sectional area (3.3 square inches) than the Performer RPM 460 manifold #7166 intake manifold for even more power in high performance and large displacement engines. The carb mount flange accepts both square-bore and spread-bore carbs for Cobra Jet applications. Will not fit 1988 and later models. Note: Early Cobra Jets came with Quadrajets.
Edelbrock RPM Air-Gap 460 Intake Manifold for Ford 429/460 Big-Block V8
Engine Intake Manifold
RPM Air-Gap Big Block Ford 460 Intake Manifold
Intake Mnfld - Condition: New
California Proposition 65
WARNING: Cancer and reproductive harm - www.P65Warnings.ca.gov Additional Information
| CNC Ported | No |
| Grade Type | Performance |
| Front Maximum Height | 4.810 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Flange Type | 4150 |
| Basic Operating RPM Range | 1500-6500 |
| Vehicle Model | Ford |
| EGR Port | No |
| Series | RPM Air-Gap |
| Single Or Dual Plane Type | Dual |
| Material | Aluminum |
| Finish | Satin |
| Rear Maximum Height | 6.150 |
| Gasket Or Seal Included | No |
| Center Maximum Height | 5.480 |
