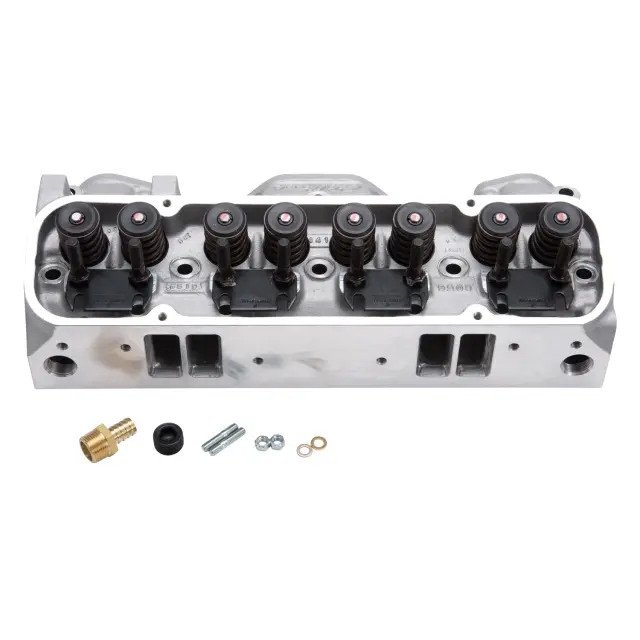

RPM CNC Pontiac Cylinder Head 72cc Hydraulic Roller Camshaft - Edelbrock (61515)
- Sale Price: $2,069.53
Details
- Brand:
- SKU:
61515
- GTIN: 00085347615155
- UPC: 085347615155
- Description: The Edelbrock #61515 Performer RPM CNC Cylinder Head has the same specifications as our popular Performer RPM cylinder head for 1962-79 389-455 c.i.d. Pontiac engines, but feature a CNC machined combustion chamber. The CNC machined chamber results in a consistent and precise chamber for improved flow performance. Performer RPM CNC cylinder head is available in two chamber sizes. Performer RPM CNC cylinder head with 72cc chambers are best for higher compression engines. The Edelbrock #61515 Performer RPM CNC cylinder head is patterned after the same port flange configuration as the 1969-1970 Ram-Air IV Pontiac Cylinder Head.
Edelbrock part #61515 Performer RPM CNC Cylinder Heads have the same specifications as our popular Performer RPM cylinder heads for 1962-79 389-455 c.i.d. Pontiac engines, but feature a CNC machined combustion chamber.
Engine Cylinder Head
RPM CNC Pontiac Cylinder Head 72cc Hydraulic Roller Camshaft
Cyl. Head - Condition: New
California Proposition 65
WARNING: Cancer and reproductive harm - www.P65Warnings.ca.gov Additional Information
| Quantity | Sold Individually |
| Exhaust Valve Diameter | 1.66 |
| EGR Port | No |
| Exhaust Runner Volume | 175 |
| Family | Performer RPM |
| Construction Type | Complete |
| Rocker Arm Stud Diameter | 0.4375 |
| Exhaust Port Location | Standard |
| Series | Performer RPM |
| Seat Angle | Exhaust 45 deg/Intake 45 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Horsepower | 450-650 |
| Seat Material | Ductile Iron |
| Retainer Included | Yes |
| Valve Spring Diameter | 1.46 |
| CNC Ported | Yes |
| Deck Thickness | 0.625 |
| Intake Valve Diameter | 2.11 |
| Camshaft Type | Hydraulic Roller |
| Valve Spring Maximum Lift | 0.575 |
| Guide Material | Manganese Bronze |
| Valve Stem Diameter | 0.3438 |
| Push Rod Diameter | (Suggested) 0.3125 |
| Valve Angle | 14 |
| Mounting Hardware Included | No |
| Valve Springs Included | Yes |
| Valve Spring Retainers Included | Yes |
| Valve Seals Included | Yes |
| Valve Locks Included | Yes |
| Valve Lock Material | Chromoly Steel Steel |
| Valve Cover Gasket Included | No |
| Rocker Arms Included | No |
| Rocker Arm Studs/Bolts Included | Yes |
| Material | Aluminum |
| Assembled | Yes |
| Intake Runner Volume | 215 |
| Head Casting Number | 31-6152 |
| Guide Plates Included | Yes |
| Guide Plate Material | Chromoly Steel Hardened Steel |
| Grade Type | Performance |
| Deck Height | 10.25 |
| Cylinder Head Gasket Included | No |
| Combustion Chamber Volume | 72 |
| Valves Included | Yes |
