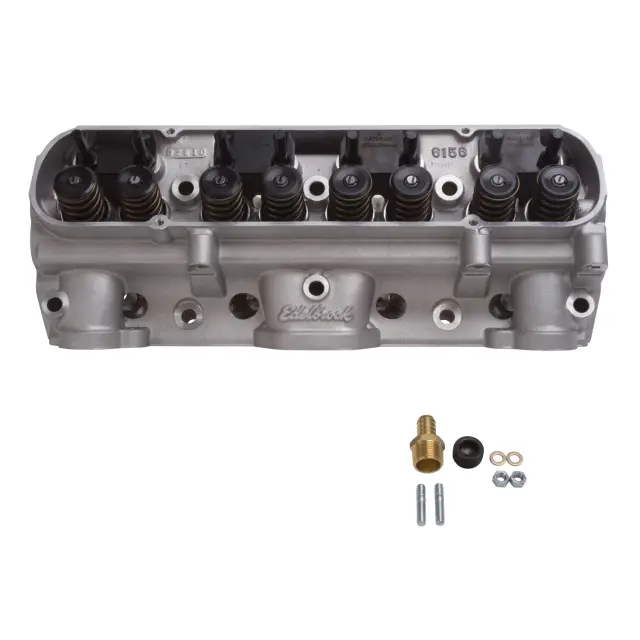

RPM CNC Pontiac D-Port Cylinder Head 72cc Hydraulic Flat Tappet Cam - Edelbrock (61599)
- Sale Price: $2,131.90
Details
- Brand:
- SKU:
61599
- GTIN: 00085347615995
- UPC: 085347615995
- Description: The Edelbrock #61599 Performer Pontiac Cylinder Head utilize a D-Port exhaust port configuration for use with standard D-port exhaust systems. They are designed for 1962-79 389, 400, 421, 428 and 455 c.i.d. V8 Pontiac engines with a 4.060" or larger bore. They feature optimized oil return passages for increased oil flow. The spark plug has been relocated closer to the exhaust valve for improved performance. This head is cast with extra thick port walls and a compact port size, making them ideal for CNC and hand porting. Complete cylinder head includes guide plates, rocker studs and high quality valvetrain for direct bolt-on application. Heat crossover is machined for 50-state emissions legal performance.
Edelbrock part #61599 Performer Pontiac D-Port Cylinder Heads are designed for 1962-79 389, 400, 421, 428 and 455 c.i.d. V8 Pontiac engines with a 4.060" or larger bore. They feature optimized oil return passages for increased oil flow.
Engine Cylinder Head
RPM CNC Pontiac D-Port Cylinder Head 72cc Hydraulic Flat Tappet Cam
Cyl. Head - Condition: New
California Proposition 65
WARNING: Cancer and reproductive harm - www.P65Warnings.ca.gov Additional Information
| Intake Valve Diameter | 2.11 |
| Exhaust Valve Diameter | 1.66 |
| EGR Port | Yes |
| Rocker Arm Stud Diameter | 0.4375 |
| Exhaust Runner Volume | 145 |
| Quantity | Sold Individually |
| Retainer Included | Yes |
| Construction Type | Complete |
| Non-PADB ID 9040 | D-215-94 |
| Exhaust Port Location | Standard |
| Camshaft Type | Flat Tappet |
| Valve Spring Maximum Lift | 0.575 |
| Guide Material | Manganese Bronze |
| Series | Performer |
| Family | Performer |
| Valve Spring Diameter | 1.46 |
| CNC Ported | Yes |
| Valve Stem Diameter | 0.3438 |
| Seat Material | Ductile Iron |
| Push Rod Diameter | (Suggested) 0.3125 |
| Deck Thickness | 0.625 |
| Valve Angle | 14 |
| Seat Angle | Exhaust 45 deg/Intake 45 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Horsepower | 400-500 |
| Valve Springs Included | Yes |
| Valve Spring Retainers Included | Yes |
| Valve Seals Included | Yes |
| Valve Locks Included | Yes |
| Valve Lock Material | Chromoly Steel Steel |
| Valve Cover Gasket Included | No |
| Rocker Arms Included | No |
| Rocker Arm Studs/Bolts Included | Yes |
| Mounting Hardware Included | No |
| Material | Aluminum |
| Intake Runner Volume | 204 |
| Head Casting Number | 31-6156 |
| Guide Plates Included | Yes |
| Guide Plate Material | Chromoly Steel Hardened Steel |
| Grade Type | Performance |
| Deck Height | 10.25 |
| Cylinder Head Gasket Included | No |
| Combustion Chamber Volume | 72 |
| Assembled | Yes |
| Valves Included | Yes |
