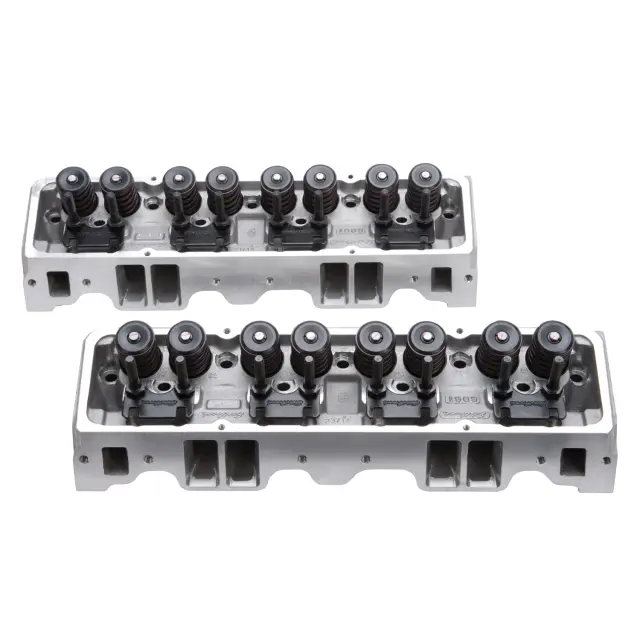

Small-Block Chevy E-Street Cylinder Head 70cc Pair - Edelbrock (5073)
- Sale Price: $1,992.95
Details
- Brand:
- SKU:
5073
- GTIN: 00085347050734
- UPC: 085347050734
- Description: The Edelbrock #5073 E-Street cylinder heads are designed for use with 1955-1986 Small-Block Chevy applications. The Edelbrock E-Street cylinder heads offer American made quality and affordable performance. E-Street cylinder heads feature as-cast ports and are designed for entry-level street performance applications operating in the idle-to-5500 rpm range. The modern combustion chamber designs improve the combustion process and larger than stock intake and exhaust ports move more air through your engine for improve efficiency. For use on pre-pollution controlled vehicles only.
The Edelbrock #5073 E-Street cylinder heads are designed for use with 1955-1986 Small-Block Chevy applications. E-Street cylinder heads feature as-cast ports and are designed for entry-level street performance applications.
Engine Cylinder Head
Small-Block Chevy E-Street Cylinder Head 70cc Pair
Cyl. Head - Condition: New
California Proposition 65
WARNING: Cancer and reproductive harm - www.P65Warnings.ca.gov Additional Information
| Quantity | Set of 2 |
| Camshaft Type | Flat Tappet |
| Deck Thickness | 0.5625 |
| Series | E-Street |
| Retainer Included | Yes |
| Intake Valve Diameter | 2.02 |
| Valve Angle | 23 |
| CNC Ported | No |
| Construction Type | Complete |
| Family | E-Street |
| Rotor Center Bore Inside Diameter | Straight |
| Valve Spring Maximum Lift | 0.550 |
| Valve Stem Diameter | 0.3438 |
| Seat Material | Ductile Iron |
| Rocker Arm Stud Diameter | 0.375 |
| Exhaust Runner Volume | 60 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Horsepower | 300-400 |
| Push Rod Diameter | (Suggested) 0.3125 |
| Exhaust Valve Diameter | 1.60 |
| EGR Port | No |
| Guide Material | Manganese Bronze |
| Exhaust Port Location | Standard |
| Valve Spring Diameter | 1.46 |
| Seat Angle | Exhaust 45 deg/Intake 45 |
| Valve Springs Included | Yes |
| Valve Spring Retainers Included | Yes |
| Valve Seals Included | Yes |
| Valve Locks Included | Yes |
| Valve Lock Material | Chromoly Steel Steel |
| Valve Cover Gasket Included | No |
| Rocker Arms Included | No |
| Rocker Arm Studs/Bolts Included | Yes |
| Mounting Hardware Included | No |
| Material | Aluminum |
| Intake Runner Volume | 185 |
| Head Casting Number | 6061P |
| Guide Plates Included | Yes |
| Guide Plate Material | Chromoly Steel Hardened Steel |
| Grade Type | Performance |
| Deck Height | 9.025 |
| Cylinder Head Gasket Included | No |
| Combustion Chamber Volume | 70 |
| Assembled | Yes |
| Valves Included | Yes |
