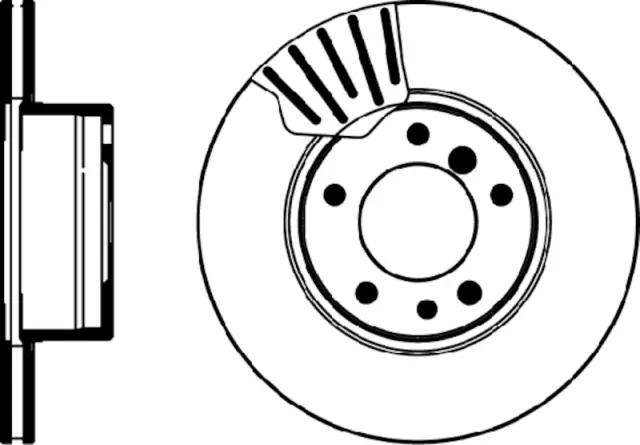

Disc Brake Rotor - Hella Pagid (355101712)
- Sale Price: $87.70
Details
- Brand:
- SKU:
355101712
- GTIN: 04082300572346
- UPC: 082300572346
- Positions: Front
- Description: HELLA PAGID Brake Discs are designed to precisely reflect the requirements of various vehicle types, brake systems, engine outputs, driving loads, and braking characteristics.
Disc Brake Rotor
BMW 525i 1995-1989, 530i 1995-1994, 535i 1993-1989, 535is 1988
BRK DISC ROT - Condition: New
California Proposition 65
WARNING: Cancer and reproductive harm - www.P65Warnings.ca.gov Key Product Benefits
- Full range is 100% high carbon (GG15 & GG20)
- Full range is 100% fully coated with premium zinc rust protection
- Manufactured according to European OE specifications (AM1 & AM2)
- Improved aesthetics and appearance of brake discs, especially when used with aluminum rims
- Not oiled, no degreasing from preservative oil before fitting, saving time and money in the workshop
- Increased carbon content for increased heat conductivity and better mechanical properties
- Fixing screws are always included if required
- Less fading and quiet braking
- Reduced braking noise
- Higher driving comfort with reduced machining tolerances
Additional Information
| ABS Tone Ring Included | No |
| Assy./disassy. by qualified personnel required! | . |
| Balancing Type | Mill Balancing |
| Bearings Included | No |
| Bolt Hole Circle Ø [in] | 4.72 |
| Bolt Hole Circle Ø [mm] | 120 |
| Brake Disc Thickness [mm] | 21.9 |
| Brake Disc Type | Internally Vented |
| Center Hole Diameter | 120.0 |
| Centering Diameter [in] | 3.11 |
| Centering Diameter [mm] | 79 |
| Construction | Full Cast |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Disc Finish | coated |
| Discard Thickness | 20.40 |
| Grade Type | Regular |
| Hat Finish | coated |
| Height [mm] | 76.1 |
| Hole Arrangement/Number | 05/07 |
| Inner diameter [mm] | 148.8 |
| Inside Diameter | 79.0 |
| Machining | High-Carbon |
| Material | gray cast iron |
| Minimum thickness [mm] | 20.4 |
| Mounting Bolt Hole Circle Diameter | 120.00 |
| Mounting Bolt Hole Quantity | 7 |
| Nominal Thickness | 21.90 |
| Number of bolts/screws | 1 |
| Outer Diameter [in] | 11.89 |
| Outer diameter [mm] | 302 |
| Outside Diameter | 302.00 |
| Overall Height | 76.10 |
| Rust Resistant Coating | Yes |
| Solid Or Vented Type Rotor | Vented |
| Supplementary Article/Info 2 | without Wheel Studs |
| Surface | Coated |
| Surface Type | Smooth |
| Technical Information Number | 50422PRO_HC_NA |
| UPC | 04082300572346 |
| Weight [kg] | 7.5 |
| Wheel Bolt Bore Ø [in] | 0.59 |
| Wheel Bolt Bore Ø [mm] | 15 |
