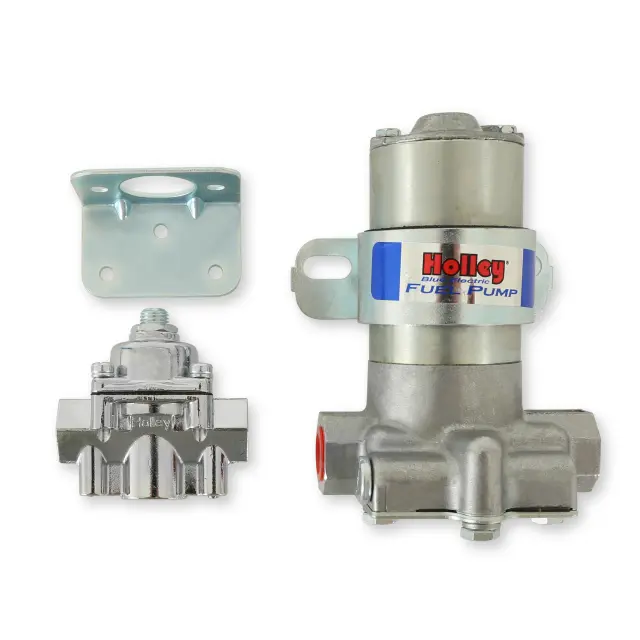

110 GPH Blue® Electric Fuel Pump With Regulator - Holley (12-802-1)
- Sale Price: $313.36
Details
- Brand:
- SKU:
12-802-1
- GTIN: 00090127484296
- UPC: 090127484296
- Description: The world famous Red®, Blue® and Black® fuel pumps are the most recognized performance pumps of all time. They have been powering racing legends and street enthusiasts alike since the early 70s. Their time proven rotor/vane design is known to get the job done in an affordable package.
Street/Strip Carbureted Applications Gasoline Only
Should be mounted below the fuel level of the tank for a good gravity feed on the inlet side. Relay kit P/N 12-753 recommended. These are to be used with 12 volt systems only. - Condition: New
California Proposition 65
WARNING: Cancer and reproductive harm - www.P65Warnings.ca.gov Key Product Benefits
- Tumble polished billet look
- Lower housing casting designed for enhanced fuel flow
- Motor draws only 3 amps current
- Relay kit P/N 12-753 & 7 1/2 amp fuse recommended
- Improved design for street/strip applications
- Not designed for use on aircraft of any type
- Distinctive “Blue” logo
- Flows 110 GPH (free flow)
- Flows 88 GPH at 9 psi
- Maximum pressure is 14 psi
- Includes P/N 12-803 fuel pressure regulator
- Provides constant fuel flow with no pulsation
- Has externally accessible pressure relief valve (max 14 psi)
- Rotor/vane pump design is more tolerant of contaminated fuels
- Weighs only 3 lbs
- Includes mounting bracket
- Repair kits are readily available
- Can be serviced from the pump end
- Not compatible with alcohol or methanol fuels
- Use of safety shut-off switch, P/N 12-810, strongly recommended
- Not designed or recommended for use with fuel injection systems
Additional Information
| Bracket Color | Silver |
| Fuel Delivery Type | Carburetor |
| Fuel Sending Unit Included | No |
| Fuel Type | Gasoline |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| Inlet Fitting Thread Size | 3/8 |
| Inlet Size | 3/8 inch NPT |
| Inlet Type | NPT |
| Internal Or External | External |
| Material | Aluminum |
| Maximum Amperage Draw | 3 |
| Maximum Flow Rating | 110 |
| Maximum Pressure | 14 |
| Negative Ground | Yes |
| Outlet Fitting Thread Size | 3/8 |
| Outlet Quantity | 1 |
| Outlet Size | 3/8 inch NPT |
| Outlet Type | NPT |
| PADb ID 3294120 | California Proposition 65 |
| PADb ID 3294145 | 5 |
| PADb ID 3294148 | Fuel Pump |
| PADb ID 3294233 | Carbureted |
| PADb ID 3294237 | Silver |
| PADb ID 3294238 | 416 |
| PADb ID 3294239 | Silver |
| PADb ID 5881167 | Air and Fuel Delivery |
| PADb ID 59964 | Universal |
| PADb ID 60509 | 110 |
| PADb ID 74442 | Limited 90 Day |
| PADb ID 81813 | Holley |
| Regulator Included | Yes |
| UPC | 00090127484296 |
| Voltage | 12 |
| Wire Quantity | 2 |
