Details
- Brand:
- SKU:
241-172
- GTIN: 00090127048924
- UPC: 090127048924
- Other Names:
LS, Valve Cover, Chevrolet, V8, V-8, Cast, Die Cast, Die-Cast, Finned, Vintage, Aluminum, Fin, Fins, 2Piece, 2-piece, 2 piece LS, vintage series, Gen 1, Gen I, Gen 5, Gen V, Coils, Integrated, LS valve covers, coil cover
- Description: Each 2-Piece LS valve cover set includes a low-profile billet oil fill cap, hardware and spacers for mounting both versions of LS coil bodies, and 12-point dress up hardware and grommets for the coil covers. These modular LS valve covers are available in 5 unique finishes: natural cast, polished, satin black, factory orange, and gloss red (black, factory orange and gloss red sets feature machined fins and logo details).
Chevrolet Gen III/IV LS - Cast Aluminum - Coil-Mounting Base & Integrated Coil Cover

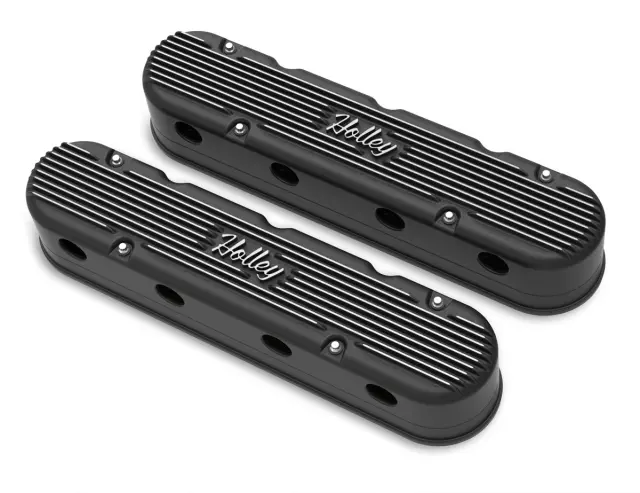

Holley 2-Piece Vintage Series Valve Cover - Gen III/IV LS - Satin Black Machined
The OE Camaro and Corvette accessory brackets may need to be clearanced when installing Holley 2-Piece LS and Tall LS valve covers and coils. - Condition: New
Key Product Benefits
- Cast aluminum 2-Piece LS valve covers designed to mount and hide both Gen I and Gen V style LS coil bodies
- Retain the performance of factory coil-on-cover ignition without the unsightly styling
- Base fits LS1, LS2, LS3, LS6 and LS7 engines
- Clearance for .750” lift cam with stock style rocker arms
- Base features internally baffled ventilation system
- Coil cover features Holley Vintage Series style fins & script logo with cast-in wiring provisions
- No coil relocation, wire harness extensions, or custom spark plug wires required
- Includes low-profile billet oil fill cap
- Includes all necessary coil mounting and dress-up hardware
Additional Information
| Bolt Pattern | Center Bolt |
| Breather Cap Included | No |
| Construction | Die Cast Aluminum |
| Finish | Satin Black Machined |
| Gasket Included | No |
| Gaskets Included | No |
| Grade Type | Performance |
| Grommets Included | No |
| Height | 3.75" |
| Hold Down Tabs Included | No |
| Material | Cast Aluminum |
| Mounting Hardware Included | Yes |
| Oil Filler Cap Included | Yes |
| Overall Height | 3.75 |
| PADb ID 3293573 | 2-Piece LS |
| PADb ID 3294120 | California Proposition 65 |
| PADb ID 3294145 | 7 |
| PADb ID 3294148 | Valve Cover |
| PADb ID 3294229 | Valve Cover |
| PADb ID 3294441 | No |
| PADb ID 3294442 | Yes |
| PADb ID 3294443 | Yes, on Baseplate |
| PADb ID 3294444 | with Coil Stands |
| PADb ID 3294445 | Yes |
| PADb ID 3294446 | Finned |
| PADb ID 3294447 | No |
| PADb ID 3294449 | .750" lift cam with stock style rocker arms |
| PADb ID 5881167 | Engine |
| PADb ID 59331 | Holley Vintage Series |
| PADb ID 59964 | GM LS Engines |
| PADb ID 60997 | Holley Script |
| PADb ID 74442 | Limited 90 Day |
| PADb ID 81813 | Holley |
| PADb ID 91003 | Yes |
| Quantity | Pair |
| UPC | 00090127048924 |
| Valve Cover Gasket Included | No |
