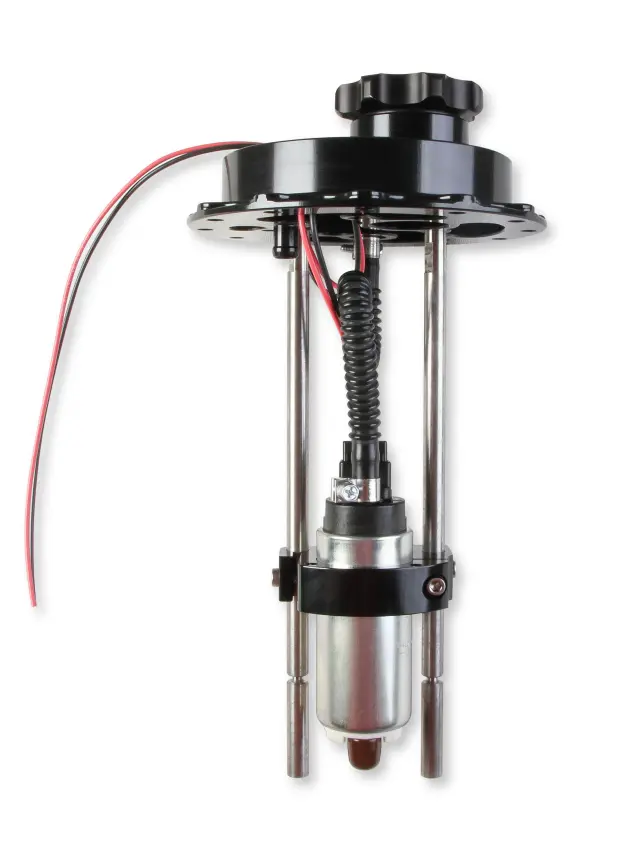

Holley Fuel Cell EFI Pump Module Assembly - Holley (12-144)
Details
- Brand:
- SKU:
12-144
- GTIN: 00090127029633
- UPC: 090127029633
- Description: ***Supports up to 550 EFI or 700 Carb HP (HP Rating @ 60 PSI at 13.5 Volts / 10.4 AMP Draw)
12-Bolt Flange 255 LPH Drop-In EFI
Fill cap thread is 1 1/2"-12 - Condition: New
California Proposition 65
WARNING: Cancer and reproductive harm - www.P65Warnings.ca.gov Key Product Benefits
- Update your fuel cell to EFI the easy way!
- Designed to drop right into your existing 12 bolt flange fuel cell
- Billet top flange housing includes an 8AN inlet and 10AN outlet port and a fuel filler cap
- Modules are available with 255 or 450 LPH fuel pumps in single pump configurations
- The pump depth is fully adjustable for fitment in the most popular cell sizes 7.5”-12” deep.
- Supports up to 550 EFI or 700 Carb HP (HP Rating @ 60 PSI at 13.5 Volts / 10.4 AMP Draw)
Additional Information
| Average Current Draw | 10.4 |
| Average Flow Rating | 255 |
| Fuel Filter Included | Yes |
| Fuel Sending Unit Included | No |
| Fuel Tank Pressure Sensor Included | No |
| Fuel Type | Gasoline |
| Gasket Or Seal Included | Yes |
| Gasket Or Seal Material | Cork |
| Grade Type | Performance |
| Height | Adjustable |
| Housing Material | Aluminum |
| In Tank or External | In Tank |
| Inlet Quantity | One |
| Inlet Size | 8 AN |
| Inlet Type | 8 AN ORB |
| Internal Or External Strainer | External |
| Lock Ring Included | Yes |
| Maximum Pressure | 60 |
| Mounting Hardware Included | Yes |
| Negative Ground | Yes |
| Outlet Quantity | One |
| Outlet Size | 10 AN |
| Outlet Type | 10 AN ORB |
| PADb ID 3294120 | California Proposition 65 |
| PADb ID 3294145 | 5 |
| PADb ID 3294148 | Fuel Pump |
| PADb ID 3294238 | 255 |
| PADb ID 3294241 | 80 |
| PADb ID 5866210 | No |
| PADb ID 5881167 | Air and Fuel Delivery |
| PADb ID 59964 | Universal |
| PADb ID 60509 | 67 |
| PADb ID 74442 | Limited 90 Day |
| PADb ID 81813 | Holley |
| PADb ID 91133 | 12 Bolt |
| Pump Type | Electric |
| Regulator Included | No |
| Single Or Dual Pump | Single |
| UPC | 00090127029633 |
| Voltage | 12 |
| Wire Harness Included | Yes |
| Wire Quantity | 2 |
