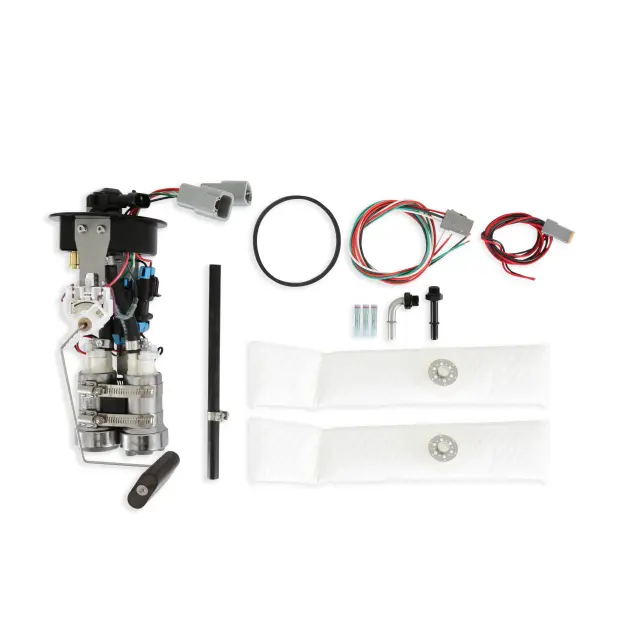

HOLLEY PUMP MODULE SYSTEM - Twin 450 LPH - Holley (12-365)
- Sale Price: $914.88
Details
- Brand:
- SKU:
12-365
- GTIN: 00090127142073
- UPC: 090127142073
- Description: Part #: 12-365 - Twin 450LPH Pump Module
Fits 1998-2002 Camaro / Firebird - Twin 450 LPH Pump Module
Drive the vehicle until the level in the tank is at or below 1/8 of a tank. To make tank removal and reinstall as easy as possible, the lower the fuel level the better. - Condition: New
California Proposition 65
WARNING: Cancer and reproductive harm - www.P65Warnings.ca.gov Key Product Benefits
- Anodized and laser-etched billet 6061-T6 flange with 6AN ORB ports for feed, return, and vent
- All SKUs compatible with Gasoline AND E85
- Comes pre-installed with new pre-calibrated fuel level (33 – 240 Ω) and tank pressure sensors
- Includes new gasket to complete installation
- A 3 x 11-inch HydraMat is included for each pump
- Fits factory plastic tank used in LS1 98-02 Camaro / Firebird or an earlier 4th Gen F-body with fuel tank upgrade
- Fittings included allowing connection to the factory 3/8 quick connect feed and return lines
- Flanges have been designed to be compatible with feed and return line sizes up to -8AN
- Step-down butt connectors included to wire level sensor
- Can be connected to factory EVAP system (w/ use of 12-874 and 935056ERL - sold separately)
- Kit includes vehicle pigtail harness - All connectors used are DTM style
Additional Information
| Average Current Draw | 34 |
| Average Flow Rating | 900 |
| Connector Color | Gray |
| Connector Gender | Female |
| Connector Quantity | 1 |
| Finish | Anodized Black |
| Fuel Filter Included | Yes |
| Fuel Sending Unit Included | Yes |
| Fuel Tank Pressure Sensor Included | Yes |
| Fuel Type | Gasoline/E85 Compatible |
| Gasket Or Seal Included | Yes |
| Gasket Or Seal Material | Rubber |
| Grade Type | Performance |
| Height | Standard |
| Housing Material | Aluminum |
| In Tank or External | In Tank |
| Inlet Quantity | One |
| Inlet Size | 6 AN ORB |
| Inlet Type | 6 AN ORB |
| Internal Or External Strainer | External |
| Lock Ring Included | No |
| Material | Billet Alluminum 6061-T6 |
| Maximum Pressure | 60 |
| Mounting Hardware Included | Yes |
| Negative Ground | Yes |
| Outlet Quantity | One |
| Outlet Size | 6 AN ORB |
| Outlet Type | 6 AN ORB |
| PADb ID 3294120 | California Proposition 65 |
| PADb ID 3294145 | 5 |
| PADb ID 3294148 | Fuel Pump Module |
| PADb ID 3294233 | EFI |
| PADb ID 3294238 | 900 |
| PADb ID 5881167 | Air and Fuel Delivery |
| PADb ID 60509 | 236 |
| PADb ID 74442 | Limited 90 Day |
| PADb ID 81813 | Holley |
| Pump Type | Electric |
| Regulator Included | No |
| Resistance Ohms Empty | 33 |
| Resistance Ohms Full | 240 |
| Single Or Dual Pump | Dual |
| UPC | 00090127142073 |
| Voltage | 12 |
| Wire Quantity | 6 |
