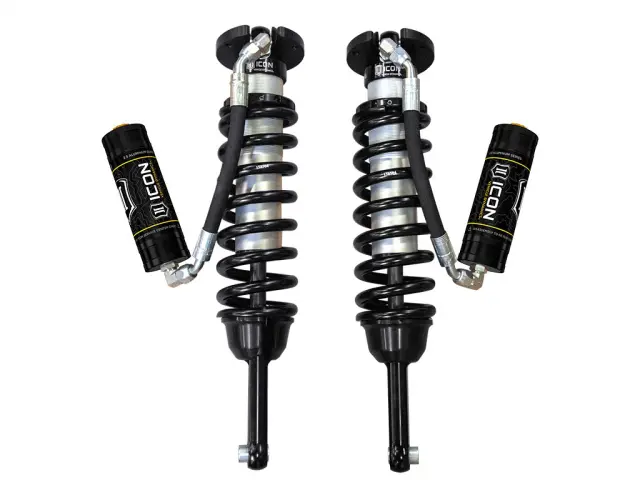

05-23 TACOMA EXT TRAVEL 2.5 VS RR COILOVER KIT - ICON Vehicle Dynamics (58735)
- Sale Price: $1,906.26
Details
- Brand:
- SKU:
58735
- GTIN: 00840103404288
- UPC: 840103404288
- Positions: Front
- Description: ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2005-2023 Toyota Tacoma. These adjustable coilovers allow up to 0-3.5” of lift height adjustability on 2005-2015 models or 0-2.75” of lift height adjustability on 2016-2023 models, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. Their extended travel length allows for more wheel travel but also requires the installation of aftermarket front upper control arms. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tacoma.
These extended length ICON VS 2.5 Series coilovers offer increased wheel travel but also require the addition of aftermarket upper control arms. They feature remote reservoirs, are vehicle specific, 100% rebuildable, and 100% revalveable.
58735
ICON 2005-2023 Toyota Tacoma 2.5 VS Extended Travel Remote Reservoir Coilover Kit
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 4.75” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 5.00” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9 with 5.00” Backspace / 0mm Offset
Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
APPLICATION NOTE #18: These systems are to be used with aftermarket upper control arms only
APPLICATION NOTE #47: 700Lb/In Expedition Coil Available For Heavier Equipped Vehicles
APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
APPLICATION NOTE #109: 2016-2023 Tacoma Lift Range Is 0-2.75”
APPLICATION NOTE #110: Trimming Required For Recommended Tire Size
APPLICATION NOTE #111: Bump Stop Spacer Kit 51045 Can Be Installed To Increase Preload .25” Beyond Maximum
TECH NOTE: Will not fit 2005-2015 2WD 5-Lug Toyota Tacoma models
TECH NOTE: 2005-2015 Toyota Tacoma will have front lift height range of 0-3.5" over stock
TECH NOTE: 2017-2023 Tacoma TRD Pro models will have front lift height range of 0-1.25" over stock - Condition: New
- Disclaimer: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
California Proposition 65
WARNING: Cancer and reproductive harm - www.P65Warnings.ca.gov Key Product Benefits
- Height-adjustable coilovers offer 0-3.5" or 0-2.75" of lift height adjustment depending on year model
- Vehicle specific tuned for superior shock damping and control
- Extended Travel length requires installation of aftermarket front upper control arms
- Kit Includes Sway bar relocation brackets
- Kit also Includes Reservoir Mounting Brackets for Optimum Tire Clearance
- CAD-plated threaded body
- Billet aluminum upper mount
- 5/8" PTFE-lined spherical bearing
- Completely re-buildable
- Hose Length Optimized for Increased Fluid Transfer
- External Reservoirs Ensures Maximum Cooling
- ICON engineered coil springs
Additional Information
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Active or Passive Suspension | Passive |
| Add-On Part | 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25) 198000 - 2 PIN COILOVER SPANNER WRENCH KIT 51045 - TOYOTA .25” BUMP STOP SPACER KIT 198001 - BILLET SPANNER WRENCH KIT 252012 - -4 TO -10 HOSE SHIELD KIT |
| Adjustable Compression | No |
| Adjustable Damping | NO |
| Adjustable Rebound | No |
| Adjustable Ride Height | Yes |
| Assembled | Yes |
| Body Diameter | 2.5 |
| California Prop 65 Warning | Yes |
| Coil Over Springs Included | Yes |
| Compressed Length | 17.42 |
| Cylinder Color | Silver |
| Cylinder Finish | Cadmium Plated |
| Cylinder Material | Steel |
| Damping Type | Oil |
| Dust Shield Included | No |
| Extended Length | 22.57 |
| Front Spring Rate | 650 |
| Gas Charged | yes |
| Grade Type | Performance |
| Includes Bump Stop | No |
| Internal Construction Type | Single Tube |
| Lower Mount Type | Eyelet |
| Material | Steel Aluminum |
| Maximum Lift | 3.5 |
| Maximum Ride Height Raising Distance | 3.5 |
| Minimum Lift | 0 |
| OEM Wheels & Tires Fitment | Yes |
| Recommended Aftermarket Tires | Recommended Aftermarket Tires: 33" x 11.25" (Larger Tires May Fit but Fender Trimming and Modifications will be Required) |
| Recommended Aftermarket Wheels | ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset ICON Alloys - 18x9" w/ 5” Backspace / 0mm Offset ICON Alloys - 20x9" w/ 5” Backspace / 0mm Offset |
| Remote Reservoir | Yes |
| Reservoir Style | Remote |
| Self-Leveling | No |
| Service Parts | 257301 - 7/8 SHAFT 10.25 OAL, 6.00 TRAVEL 611067 - TACOMA/FJ/4RNR LOWER CO BRG/SPCR KIT 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL 611019 - COILOVER HARDWARE KIT PAIR 252001 - 2.5 FIXED SPANNER WRENCH 252003 - SEAL INSTALL TOOL 2.5/3.0 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0) 191016 - 7.5" FINNED RESI UPGRADE KIT |
| Shaft Diameter | 0.875 |
| Shock Absorber Body End Measuring Point | Top of Upper Mount Plate |
| Shock Absorber Rod End Measuring Point | Center of Eylet |
| Spring Color | Black |
| Spring Material | Steel |
| Spring Rate Type | Linear |
| Title | ICON 2005-2023 Toyota Tacoma 2.5 VS Extended Travel Remote Reservoir Coilover Kit |
| Travel Length | 5.16 |
| Upper Mount Type | Mounting Plate |
| Valving Type | Digressive |
