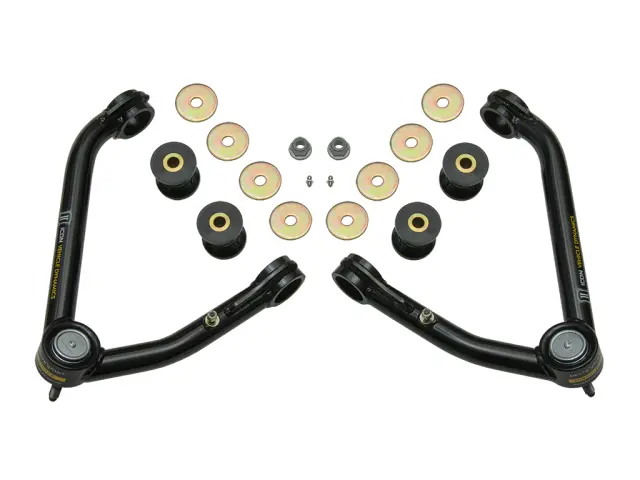

14-18 GM 1500 TUBULAR UCA DJ KIT (LARGE TAPER) - ICON Vehicle Dynamics (78601DJ)

Details

• Brand:



• SKU:

  78601DJ

• GTIN: 00840103406466
• UPC: 840103406466
• Positions: Front Upper
• Description: Take the performance of your 2014-2018 GM 1500 truck to new levels with the ICON Vehicle Dynamics Delta Joint tubular upper control arm kit. All ICON tubular upper control arms are constructed from CNC bent 1026 DOM steel tubing and then powder coated to a semi-gloss black finish for maximum strength and corrosion resistance. ICON upper control arms are engineered with built-in caster correction for optimal alignment specifications and confidence inspiring handling. A main benefit of ICON upper control arms is the potential for increased wheel travel when paired with our 2.5 series coilovers, this translates into superior performance and ride quality for your 2014-2018 GM 1500.
  These upper control arms feature ICON's patented Delta Joint. The Delta Joint is a heavy duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greasable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.
  2014-2018 GM 1500 TUBULAR UCA DELTA JOINT KIT (LARGE TAPER)
  GM 1500 TUBULAR UCA DJ KIT (LARGE TAPER)
  ICON 2014-18 GM 1500, Tubular Upper Control Arm Kit w/Delta Joint, Large Taper
  OEM Wheels & Tires Fitment: Yes
  Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
  Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5” Backspace / 0mm Offset
  Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5” Backspace / 0mm Offset
  Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
  TECH NOTE: Only compatible with OE spindles. DO NOT install in combination with ANY aftermarket spindles.
  TECH NOTE: Large taper applications can be identified by their stamped steel or aluminum OE front lower control arms
  TECH NOTE: Arm geometry is optimized for use with 1-3" of front lift over stock
  TECH NOTE: Not compatible with models equipped Magnetic Ride Control
  TECH NOTE: Not recommended for Hybrid models
