19-23 RANGER EXT TRAVEL 2.5 VS RR COILOVER KIT - ICON Vehicle Dynamics (91355)
- Sale Price: $1,881.51
Details
- Brand:
- SKU:
91355
- GTIN: 00840103408569
- UPC: 840103408569
- Positions: Front
- Description: ICON Vehicle Dynamics V.S. Series 2.5” remote reservoir coilover shocks are an incredible upgrade for the front end of the 2019-2023 Ford Ranger. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 0-3.5” of lift height adjustability for use of larger, more aggressive wheel and tire combinations. The larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. When paired with ICON rear 2.0 Aluminum Series or 2.5" Series shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your Ranger.
ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road.
91355

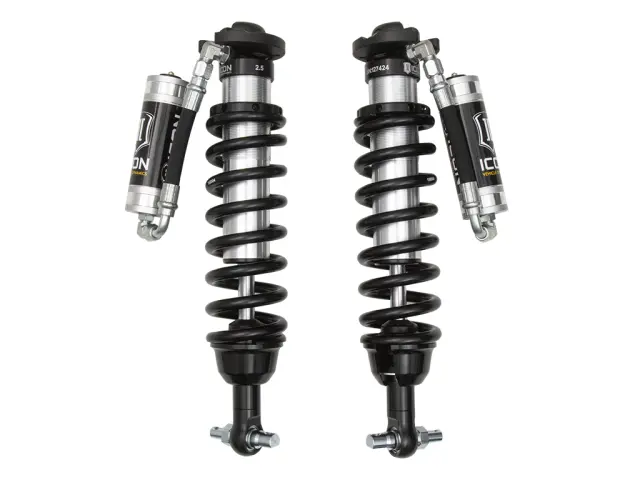

ICON 2019-2023 Ford Ranger, Extended Travel 2.5 VS Remote Reservoir Coilover Kit
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 6.00” Backspace / 25mm Offset
Recommended Aftermarket Tires: 33"x11.25" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
APPLICATION NOTE #110: Minor Trimming Required For Recommended Tire Size
TECH NOTE: Extended travel coilovers also require aftermarket front upper control arms. DO NOT install in conjunction with OE front upper control arms.
TECH NOTE: Ranger XLT or Lariat models equipped with Tremor package have front lift height range of 0-2.5" over stock.
TECH NOTE: Not compatible with Ranger Raptor. - Condition: New
- Disclaimer: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
California Proposition 65
WARNING: Cancer and reproductive harm - www.P65Warnings.ca.gov Key Product Benefits
- Increased wheel travel over stock
- Vehicle specific tuned front shocks for superior shock damping and control
- External reservoir to attain cooler operating temperatures during extended off-road use
- Improved ride quality over stock both on and off-road
- Height-adjustable coilovers offer 0-3.5” of lift height adjustment
- ICON engineered coil springs
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated shock body with 7/8" induction hardened, chrome plated shaft
- High strength alloy CNC machined lower bar pin
- FK Rod End bearings for extended longevity and minimal deflection
- 100% Bolt-on - no cutting or welding necessary for installation
Additional Information
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Active or Passive Suspension | Passive |
| Add-On Part | 252012 - -4 TO -10 HOSE SHIELD KIT 198001 - BILLET SPANNER WRENCH KIT 198000 - 2 PIN COILOVER SPANNER WRENCH KIT 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25) |
| Adjustable Compression | No |
| Adjustable Damping | NO |
| Adjustable Rebound | No |
| Adjustable Ride Height | Yes |
| Assembled | Yes |
| Body Diameter | 2.5 |
| California Prop 65 Warning | Yes |
| Coil Over Springs Included | Yes |
| Compressed Length | 15.82 |
| Cylinder Color | Silver |
| Cylinder Finish | Cadmium Plated |
| Cylinder Material | Steel |
| Damping Type | Oil |
| Dust Shield Included | No |
| Extended Length | 21.38 |
| Front Spring Rate | 650 |
| Gas Charged | Yes |
| Grade Type | Performance |
| Includes Bump Stop | Yes |
| Internal Construction Type | Single Tube |
| Lower Mount Type | BAR PIN |
| Material | Steel Aluminum |
| Maximum Lift | 3.5 |
| Maximum Ride Height Raising Distance | 3.5 |
| Minimum Lift | 0 |
| OEM Wheels & Tires Fitment | Yes |
| Recommended Aftermarket Tires | 33"x11.25" (Larger Tires May Fit but Fender Trimming and Modifications will be Required) |
| Recommended Aftermarket Wheels | ICON Alloys - 18x9" w/ 6.00” Backspace / 25mm Offset ICON Alloys - 17x8.5 w/ 5.75" Backspace / 25mm Offset |
| Remote Reservoir | Yes |
| Reservoir Style | Remote |
| Self-Leveling | No |
| Service Parts | 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0) 252003 - SEAL INSTALL TOOL 2.5/3.0 191016 - 7.5" FINNED RESI UPGRADE KIT 252001 - 2.5 FIXED SPANNER WRENCH 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT 611019 - COILOVER HARDWARE KIT PAIR 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL 257338 - 7/8 SHAFT 12.25 OAL, 8.00 TRAVEL |
| Shaft Diameter | 0.875 |
| Shock Absorber Body End Measuring Point | Top of Upper Mount Plate |
| Shock Absorber Rod End Measuring Point | Flat on Bar Pin |
| Spring Color | Black |
| Spring Material | Steel |
| Spring Rate Type | Linear |
| Title | ICON 2019-2023 Ford Ranger, Extended Travel 2.5 VS Remote Reservoir Coilover Kit |
| Travel Length | 5.57 |
| Upper Mount Type | Mounting Plate |
| Valving Type | Digressive |
