96-04 TACOMA EXT TRAVEL 2.5 VS RR CDCV COILOVER KIT - ICON Vehicle Dynamics (58715C)
- Sale Price: $2,099.37
Details
- Brand:
- SKU:
58715C
- GTIN: 00840103404172
- UPC: 840103404172
- Positions: Front
- Description: ICON Vehicle Dynamics V.S. Series 2.5” remote reservoir coilover shocks are an incredible upgrade for the front end of the 1996-2004 Toyota Tacoma 4WD/Prerunner. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 0-3” of lift height adjustability for use of larger, more aggressive wheel and tire combinations. The larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Their extended travel length allows for more wheel travel but also requires the installation of aftermarket front upper control arms. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. ICON's exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle. When paired with ICON rear 2.0 Aluminum Series rear shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your Tacoma.
These ICON coilovers feature 2.5 Series shocks and coil springs optimized for this application. The shock’s larger 2.5” body and increased piston area improves damping ability and ride characteristics across varying types of terrain.
58715C

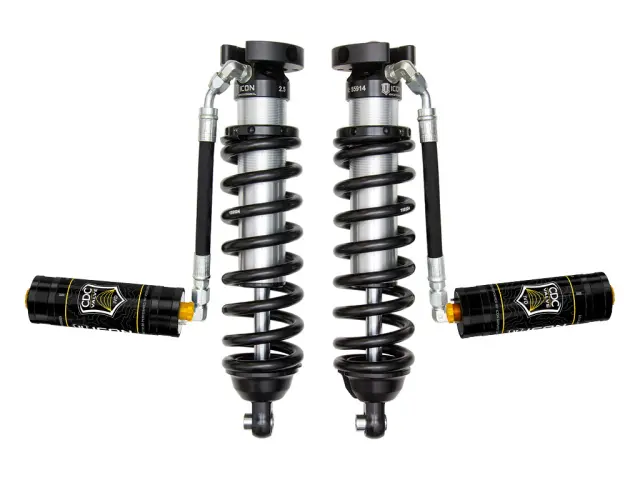

ICON 1996-2004 Toyota Tacoma, 0-3" Lift, Front,V.S. 2.5 Series Coilover Kit, Extended Travel, Remote Reservoir, 700 lbs/in Spring Rate
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.00” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.00” Backspace / 0mm Offset
Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
APPLICATION NOTE #18: These systems are to be used with aftermarket upper control arms only
APPLICATION NOTE #47: 700Lb/In Expedition Coil available for heavier equipped vehicles
APPLICATION NOTE #55: Shocks are fully serviceable. Coilover heights indicated are for a stock equipped vehicle
APPLICATION NOTE #111: Bump stop spacer kit available that can be installed to increase threads showing beyond max recommendation
APPLICATION NOTE #185: Will not fit 2WD Tacoma with 5 wheel lug studs - Condition: New
- Disclaimer: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
California Proposition 65
WARNING: Cancer and reproductive harm - www.P65Warnings.ca.gov Key Product Benefits
- Increased wheel travel over stock
- Vehicle specific tuned front shocks for superior shock damping and control
- External reservoir to attain cooler operating temperatures during extended off-road use
- ICON CDCV equipped for 10 settings of external compression damping adjustment
- Improved ride quality over stock on and off-road
- Height-adjustable coilovers offer 0-3" of lift height adjustment
- ICON engineered coil springs
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated shock body with 7/8" induction hardened, chrome plated shaft
- FK Rod End bearings for extended longevity and minimal deflection
- 100% Bolt-on - no cutting or welding necessary for installation
Additional Information
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Active or Passive Suspension | Passive |
| Add-On Part | 198000 - 2 PIN COILOVER SPANNER WRENCH KIT 58500DJ - 96-04 TACOMA/96-02 4RNR BILLET UCA DJ KIT 58400DJ - 96-04 TACOMA/96-02 4RNR TUBULAR UCA DJ KIT 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25) 198001 - BILLET SPANNER WRENCH KIT 252012 - -4 TO -10 HOSE SHIELD KIT 51045 - TOYOTA .25” BUMP STOP SPACER KIT 158508 - COIL SPRING 1400.0300.0700 BLACK |
| Adjustable Compression | Yes |
| Adjustable Damping | Yes |
| Adjustable Rebound | No |
| Adjustable Ride Height | Yes |
| Assembled | Yes |
| Body Diameter | 2.5 |
| California Prop 65 Warning | Yes |
| Coil Over Springs Included | Yes |
| Compressed Length | 14.5 |
| Cylinder Color | Silver |
| Cylinder Finish | Cadmium Plated |
| Cylinder Material | Steel |
| Damping Adjustment Type | Manual |
| Damping Type | Oil |
| Dust Shield Included | No |
| Extended Length | 19.85 |
| Front Spring Rate | 650 |
| Gas Charged | yes |
| Grade Type | Performance |
| Includes Bump Stop | No |
| Internal Construction Type | Single Tube |
| Lower Mount Type | Eyelet |
| Material | Aluminum |
| Maximum Lift | 3 |
| Maximum Ride Height Raising Distance | 3 |
| Minimum Lift | 0 |
| OEM Wheels & Tires Fitment | Yes |
| Recommended Aftermarket Tires | 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required) |
| Recommended Aftermarket Wheels | ICON Alloys - 18x9" w/ 5” Backspace / 0mm Offset ICON Alloys - 20x9" w/ 5” Backspace / 0mm Offset ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset |
| Remote Reservoir | Yes |
| Reservoir Style | Remote |
| Self-Leveling | No |
| Service Parts | 252001 - 2.5 FIXED SPANNER WRENCH 191016 - 7.5" FINNED RESI UPGRADE KIT 611019 - COILOVER HARDWARE KIT PAIR 252003 - SEAL INSTALL TOOL 2.5/3.0 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0) 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL 611067 - TACOMA/FJ/4RNR LOWER CO BRG/SPCR KIT 257301 - 7/8 SHAFT 10.25 OAL, 6.00 TRAVEL |
| Shaft Diameter | 0.875 |
| Shock Absorber Body End Measuring Point | Top of Upper Mount Plate |
| Shock Absorber Rod End Measuring Point | CENTER OF EYELET |
| Spring Color | Black |
| Spring Material | Steel |
| Spring Rate Type | Linear |
| Title | ICON 1996-2004 Toyota Tacoma, 0-3" Lift, Front,V.S. 2.5 Series Coilover Kit, Extended Travel, Remote Reservoir w/ CDCV |
| Travel Length | 5.36 |
| Upper Mount Type | Mounting Plate |
| Valving Type | Digressive |
