High Performance Oil Pump - Melling (10778C)
Sale Price$240.40

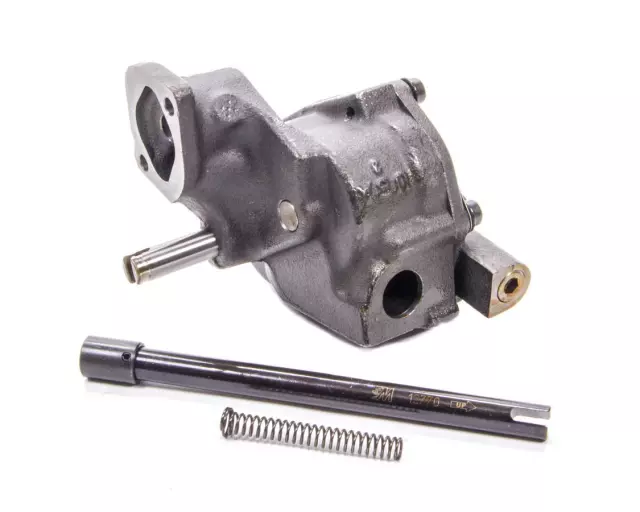

Description : Made in USA. Melling high performance anti-cavitation oil pumps provide dependable performance every time in every application under the toughest RPM conditions. The Melling high performance anti-cavitation oil pump features a doweled cast iron housing and cover with additional machined anti-cavitation grooves, extended drive and idler shafts for additional support at increased RPM’s, screw in relief spring plug, a CNC machined cover and housing that is manganese phosphate coated, self locking socket head bolts includes wrench, billet steel gears, and a chrome moly drive shaft with steel guide. Includes lower pressure spring to reduce pressure. Every Melling high performance oil pump is individually tested for pressure and flow under actual engine operating conditions. Melling high performance anti-cavitation oil pumps are for racing applications only and are not recommended for street use.
10778C High Performance, High Volume, High Pressure, Billet Steel Oil Pump
High Performance, High Volume, High Pressure, Racing, Heavy Duty, Oil Pump
CHEV, GMC - 396, 402, 427, 454 (1965–1994)
10778C High Performance, High Volume, High Pressure, Billet Steel Oil Pump
High Performance, High Volume, High Pressure, Racing, Heavy Duty, Oil Pump
CHEV, GMC - 396, 402, 427, 454 (1965–1994)
- Return Policy
- Min. 12 Months
- Safe, Secure Checkout
Product Details
Description
Made in USA. Melling high performance anti-cavitation oil pumps provide dependable performance every time in every application under the toughest RPM conditions. The Melling high performance anti-cavitation oil pump features a doweled cast iron housing and cover with additional machined anti-cavitation grooves, extended drive and idler shafts for additional support at increased RPM’s, screw in relief spring plug, a CNC machined cover and housing that is manganese phosphate coated, self locking socket head bolts includes wrench, billet steel gears, and a chrome moly drive shaft with steel guide. Includes lower pressure spring to reduce pressure. Every Melling high performance oil pump is individually tested for pressure and flow under actual engine operating conditions. Melling high performance anti-cavitation oil pumps are for racing applications only and are not recommended for street use.
10778C High Performance, High Volume, High Pressure, Billet Steel Oil Pump
High Performance, High Volume, High Pressure, Racing, Heavy Duty, Oil Pump
CHEV, GMC - 396, 402, 427, 454 (1965–1994)
10778C High Performance, High Volume, High Pressure, Billet Steel Oil Pump
High Performance, High Volume, High Pressure, Racing, Heavy Duty, Oil Pump
CHEV, GMC - 396, 402, 427, 454 (1965–1994)
Features & Benefits
- High volume performance upgrade for the 10770.
- 25% volume increase over standard oil pump.
- Cover is doweled to the pump housing Extended drive and idler shaft for additional support in the cover eliminating dynamic shfaft deflection at increased RPM levels. assure alignment of the shaft bores.
- Cover is doweled to the pump housing to assure alignment of the shaft bores.
- Includes +15 PSI higher pressure relief spring installed and optional standard pressure relief spring.
- Includes 12770 chrome moly intermediate shaft with steel guide.
- Billet steel gears.
- Same as 10778 except with the addition of grooves machined in the housing and cover.
- Cast Iron Housing
Part Number (MPN)
10778C
Brand
SKU
10778C
UPC / GTIN
729295513155 / 00729295513155
Condition
New
Brand
Melling Select Performance
Additional Cover Shaft Support
Yes
Additional Volume Over Stock Percentage
25%
Adjustable Bypass Pressure
Yes
Alternate Pressure Springs Included
Yes
Anti-Cavitation
Yes
Drive Shaft Included
Yes
Drive Type
Drive Shaft
Gasket Or Seal Included
No
Gear Material
Billet Steel
Gear Type
Spur Gear
Grade Type
Performance
Height
134.00
Housing Material
Cast Iron
Mounting Hole Diameter
6.00
Mounting Hole Quantity
2
Oil Pump Pressure Type
High Pressure
Oil Pump Type
Gear
Oil Pump Volume Type
High Volume
Pickup Tube Diameter
19.00
UPC
00729295513155
Width
94.00
| Year | Make | Model | Body & Trim | Engine & Transmission |
|---|---|---|---|---|
Vehicle #1
Year
Make
Model
Body & Trim
Engine & Transmission
| Brand | Equivalent Part Numbers |
|---|---|
BrandEquivalent Part Numbers
Dynagear
DM-77HVC
